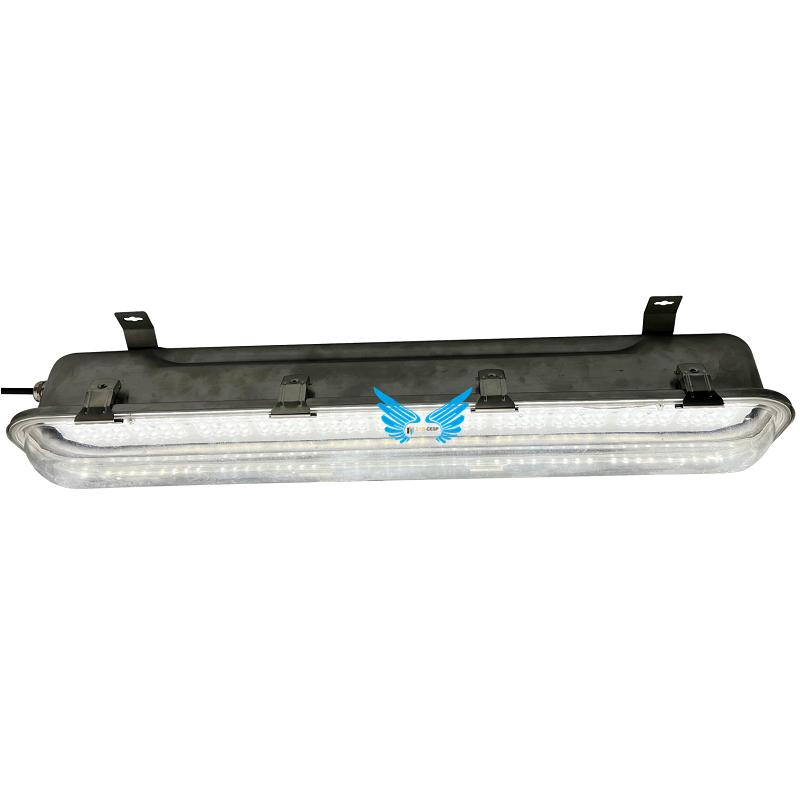

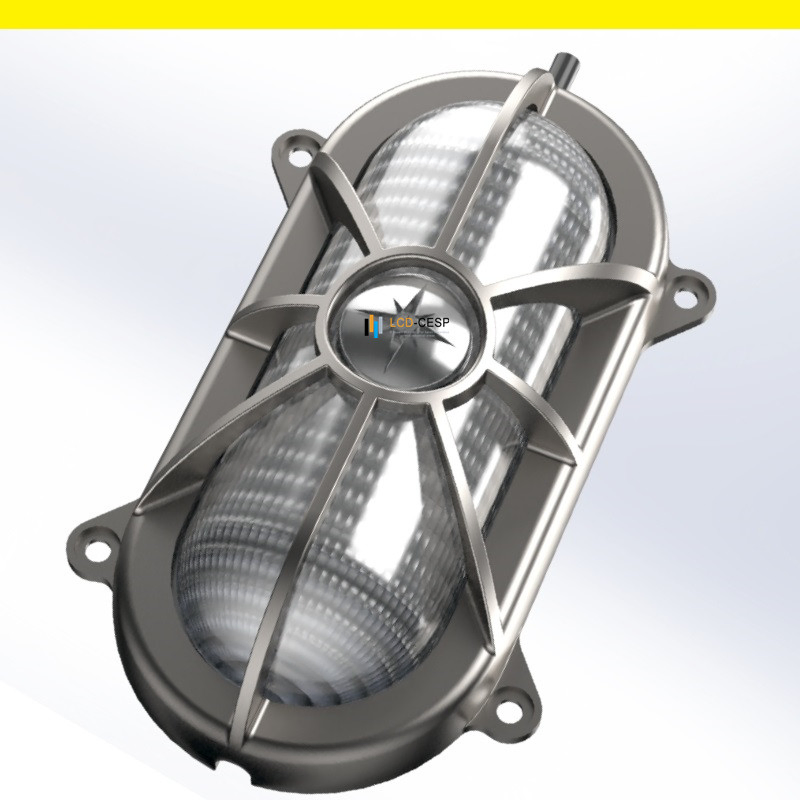

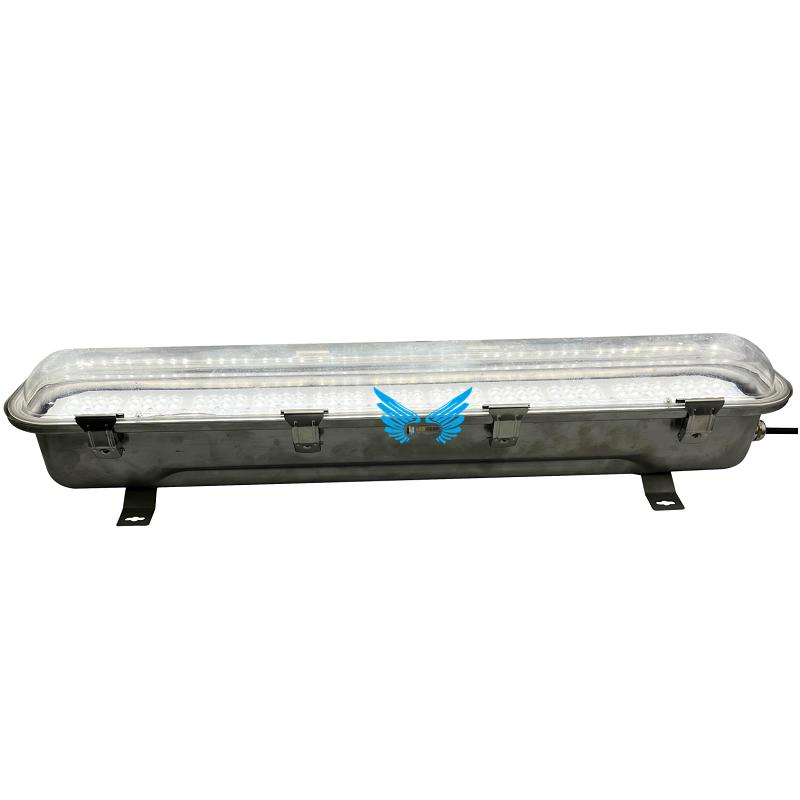

Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.LCD-CFL-SS-083-LN10x20
FeatureAnti-corrosion, Dust-Proof, Waterproof
Light Body MaterialStainless Steel
IP RateIP65 / IP66 / IP67 / IP69K
IK RateIK10 / IK07
CCT2700-6500K
Lumen Output120-150lm/W
Specification365*420*60mm / 600/1200/1500MM
HS Code9405421000

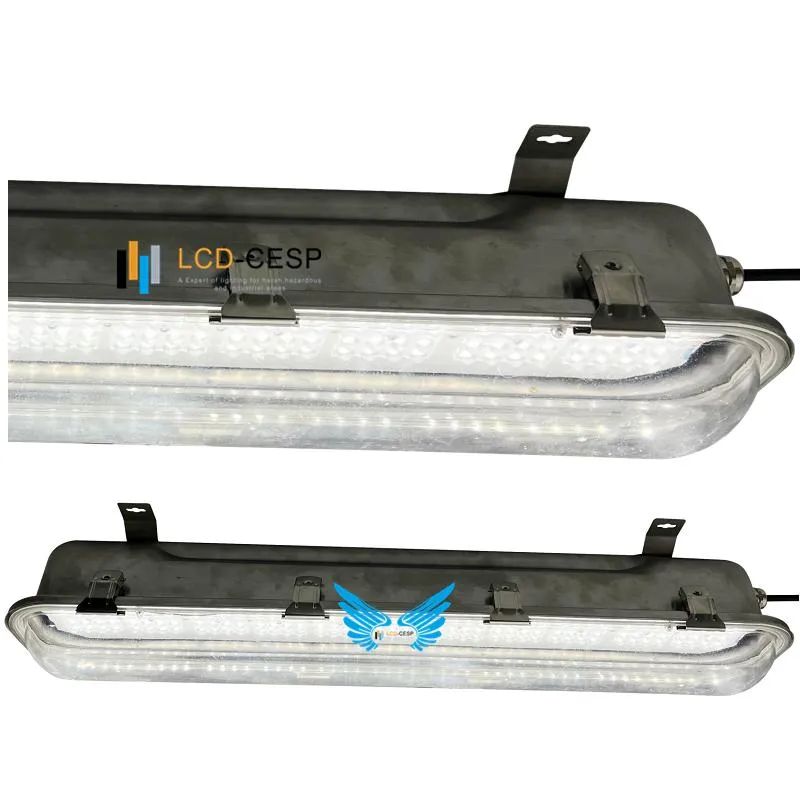

Marine-Grade Bulkhead Light

Key Features

  • The stainless-steel SST316 housing provides extreme chemical resistance for aggressive media environments.
  • High-efficiency LED system reduces servicing costs and increases lamp service life.
  • Emergency control unit compatibility with battery backup options.
  • Available in two housing dimensions based on power requirements (2x10, 2x20).
  • Toughened protective glass with high light transmittance and extra strength.
  • Against water pressure of 100bar (1450psi) and temperatures up to 80ºC.
  • Flicker-free driver with quick start for instant 100% luminous flux.
  • High CRI options (>80 or >97) supporting human health and sleep quality.

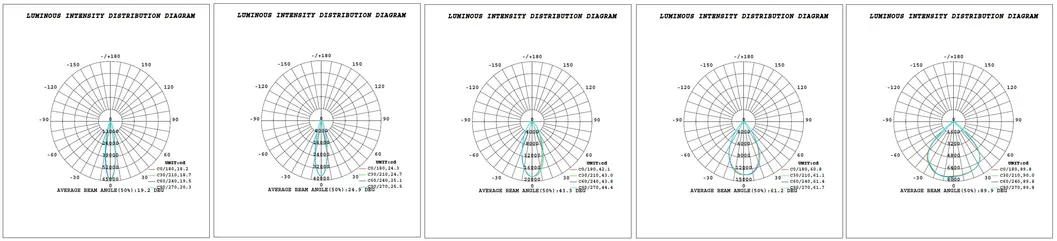

Light Distribution

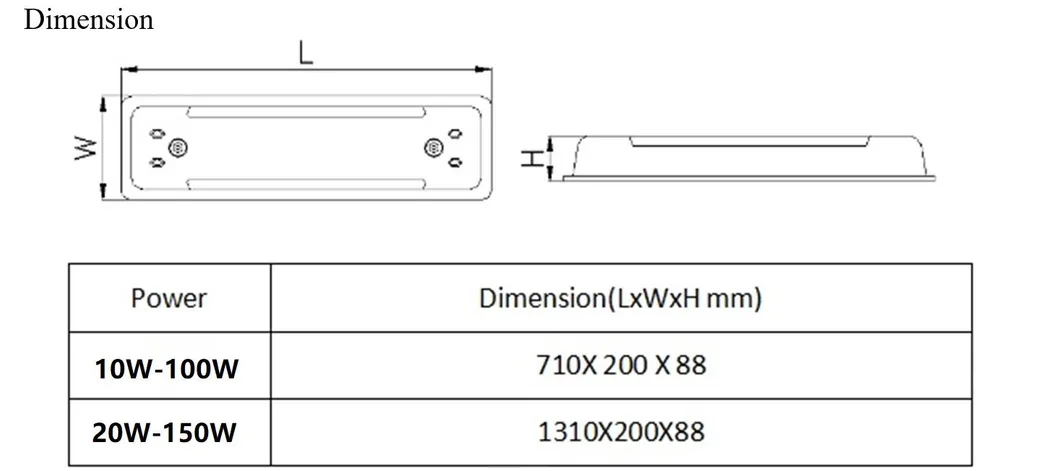

Dimension Chart
Specification Chart

Technical Parameters

Installation ZonesZone 1 - Zone 2 (Gas) & Zone 21 - Zone 22 (Dust)
StandardsIEC60079
Ex-markEx eq II T6 Gb/Ext III BT85ºC Db
Rated VoltageAC100-277V 50/60Hz or 20-32VDC
Luminous Flux1300lm / 2600lm / 5200lm options
Ambient Temp-40°C ~ +55°C
Cable EntryM25X1.5(2pcs), cable dia 10-14mm
Warranty5 Years on complete fixture

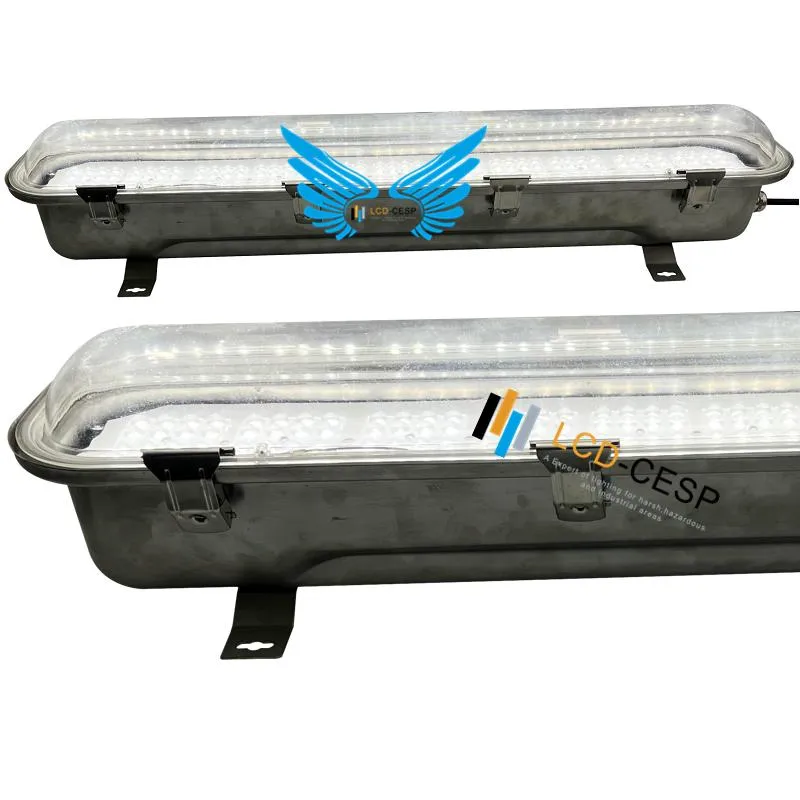

Product View 1

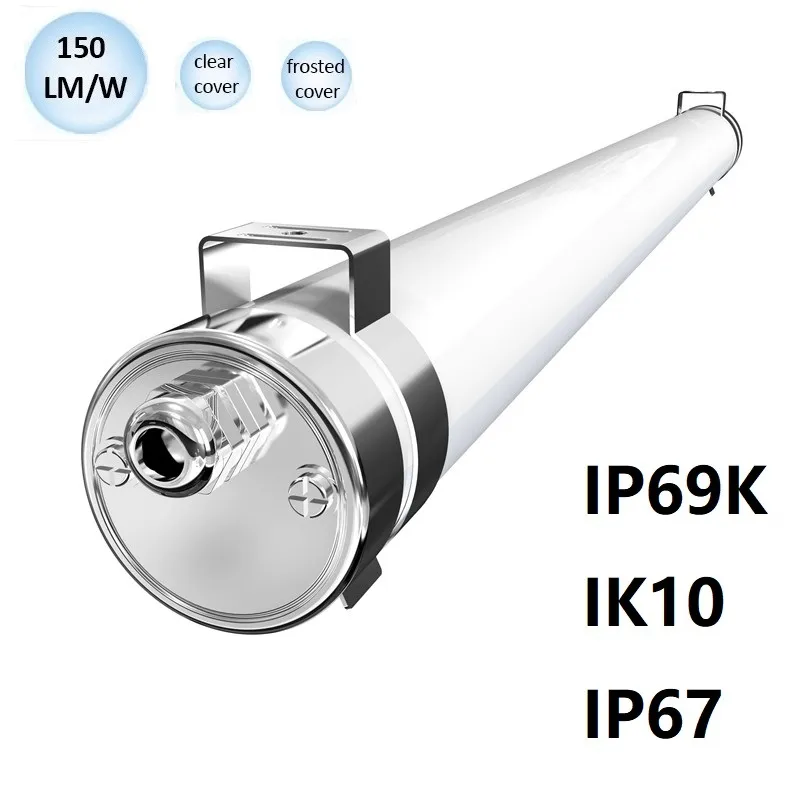

Product View 2

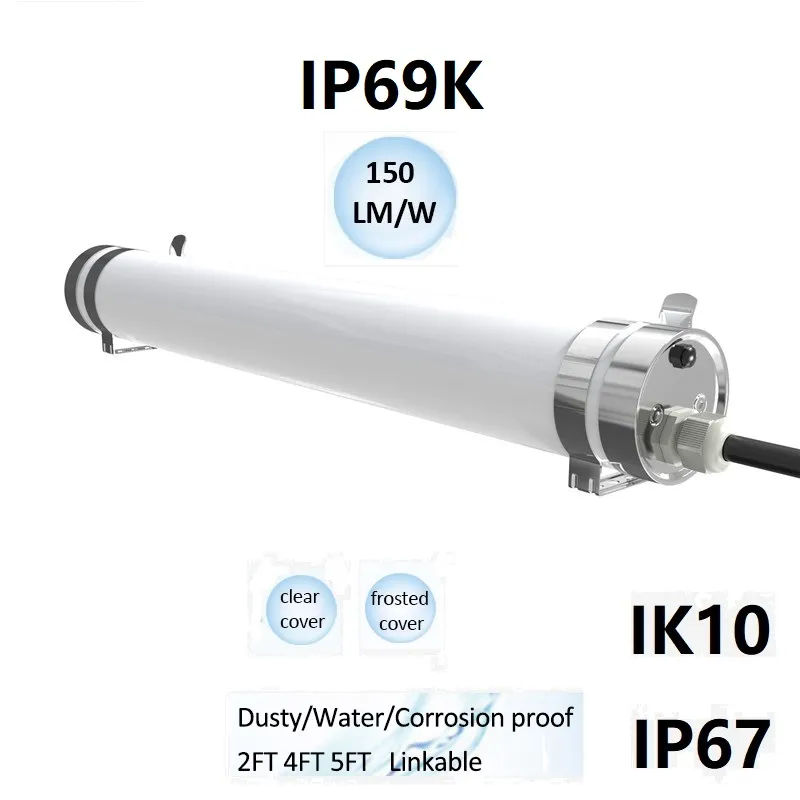

Product View 3

Applications

Petrochemical Industry Offshore Platforms Marine Industry Oil Fields Power Plants Ship & Dock Food Processing Control Rooms Boiler Rooms Laboratories

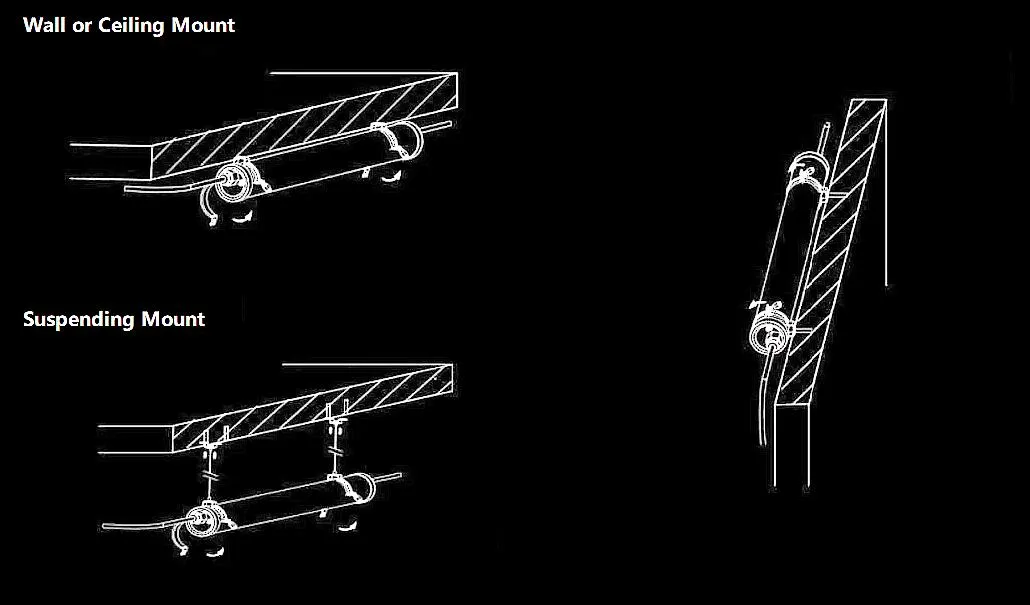

Installation and Application

Frequently Asked Questions

What is the advantage of the SST316 stainless steel housing?
SST316 stainless steel is one of the most chemically resistant materials, making these light fittings ideal for industries with extra aggressive media and harsh corrosive environments.
Does the light support emergency operation?
Yes, it is possible to install an emergency control unit with a battery to ensure illumination during power outages.
What are the IP and IK ratings for this product?
The product features high-level protection including IP66, IP67, and IP69K (anti-high pressure water washer) and impact resistance ratings of IK07 or IK10 depending on the tube material (PMMA or PC).
Is the light suitable for hazardous gas and dust zones?
Yes, it is designed for use in Zone 1 & Zone 2 for Gas and Zone 21 & Zone 22 for Dust environments, compliant with IEC60079 standards.
What installation methods are available?
The fixture supports multiple installation ways including Ceiling Mount, Chain Suspension, Hook Mount, and Surface Mounting.
What is the warranty period for this marine-grade light?
We provide a 5-year warranty on the complete fixture, including the LED driver and the housing.
