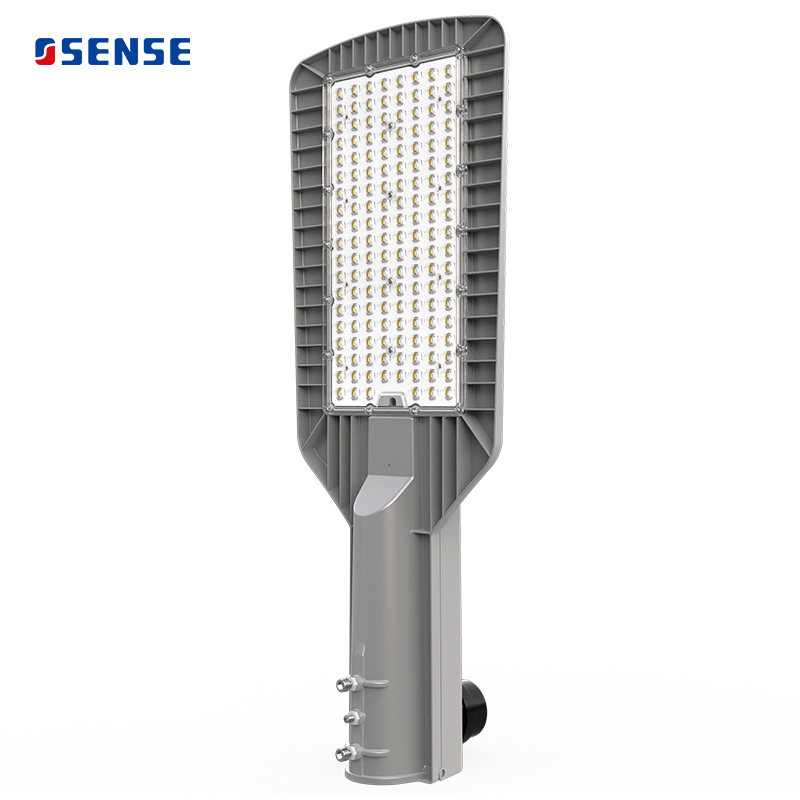

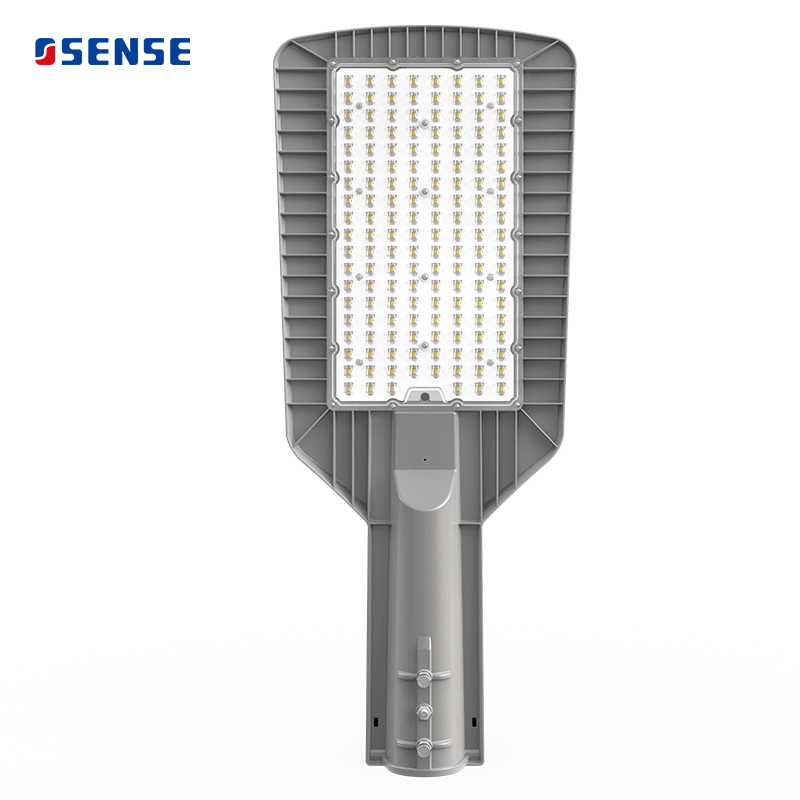

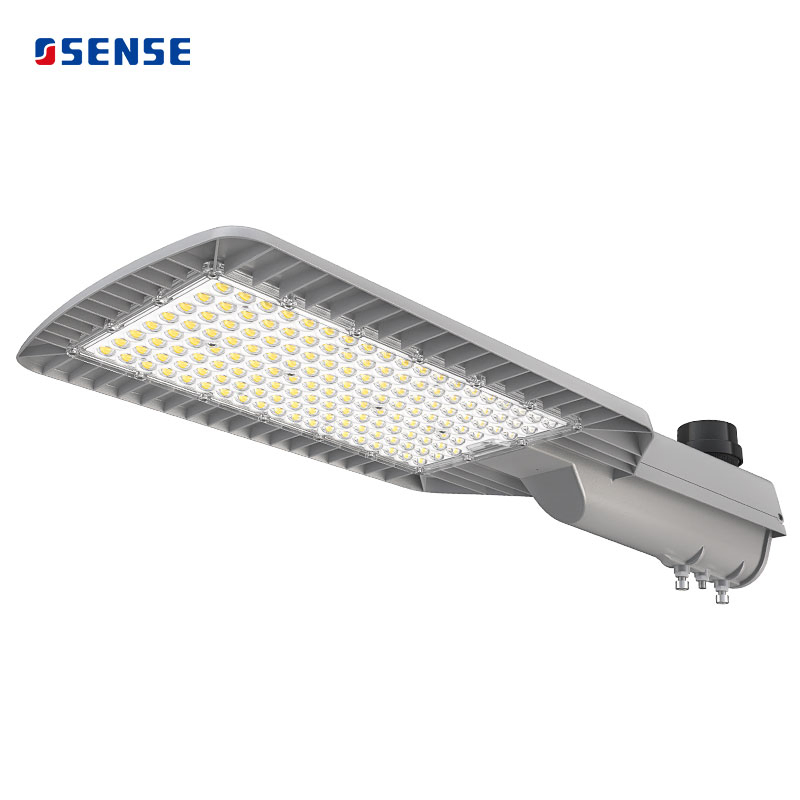

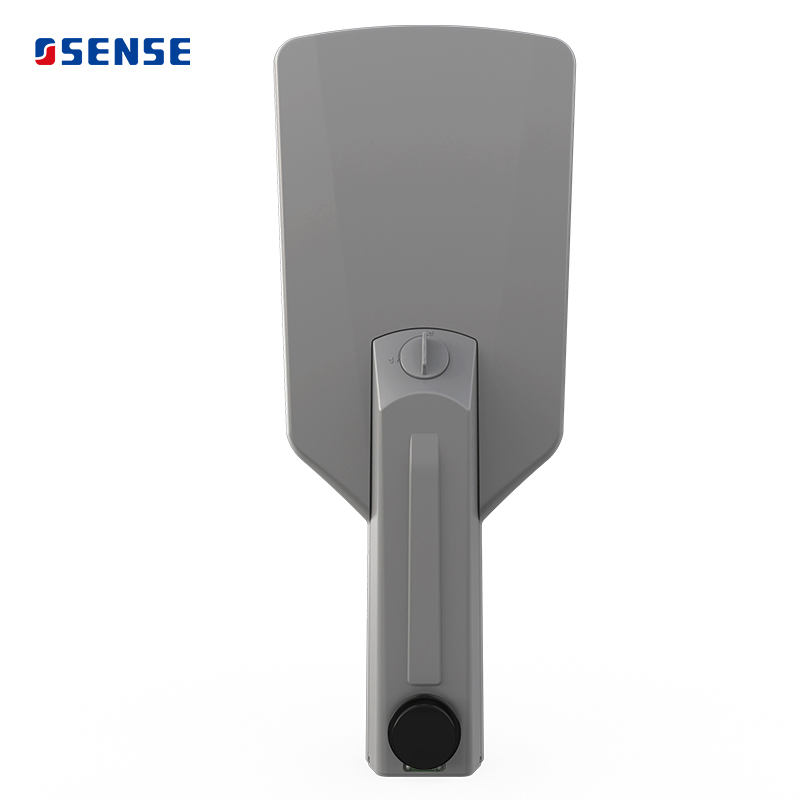

Manufacturer Supplier Factory ODM OEM 20-120W Power Saving IP66 Light Waterproof Solar Post Top Garden Light Housing LED Street Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
SWL-BY200W
Lamp Body Material
Aluminum
Power
60W
IP Rating
IP66
Input Voltage
100-277V
LED Chips Brand
CREE/OSRAM/Nichia/Lumileds/Bridgelux
Operating Temp
-30℃/+45℃
IK Rating
08
CRI
>70 / >80
Surge Protection
10kv/20kv
Warranty
3/5/7/10 Years
Lifespan
L70 > 50,000h

Core Features

Patent private mold, integrated Die-casting for superior durability.

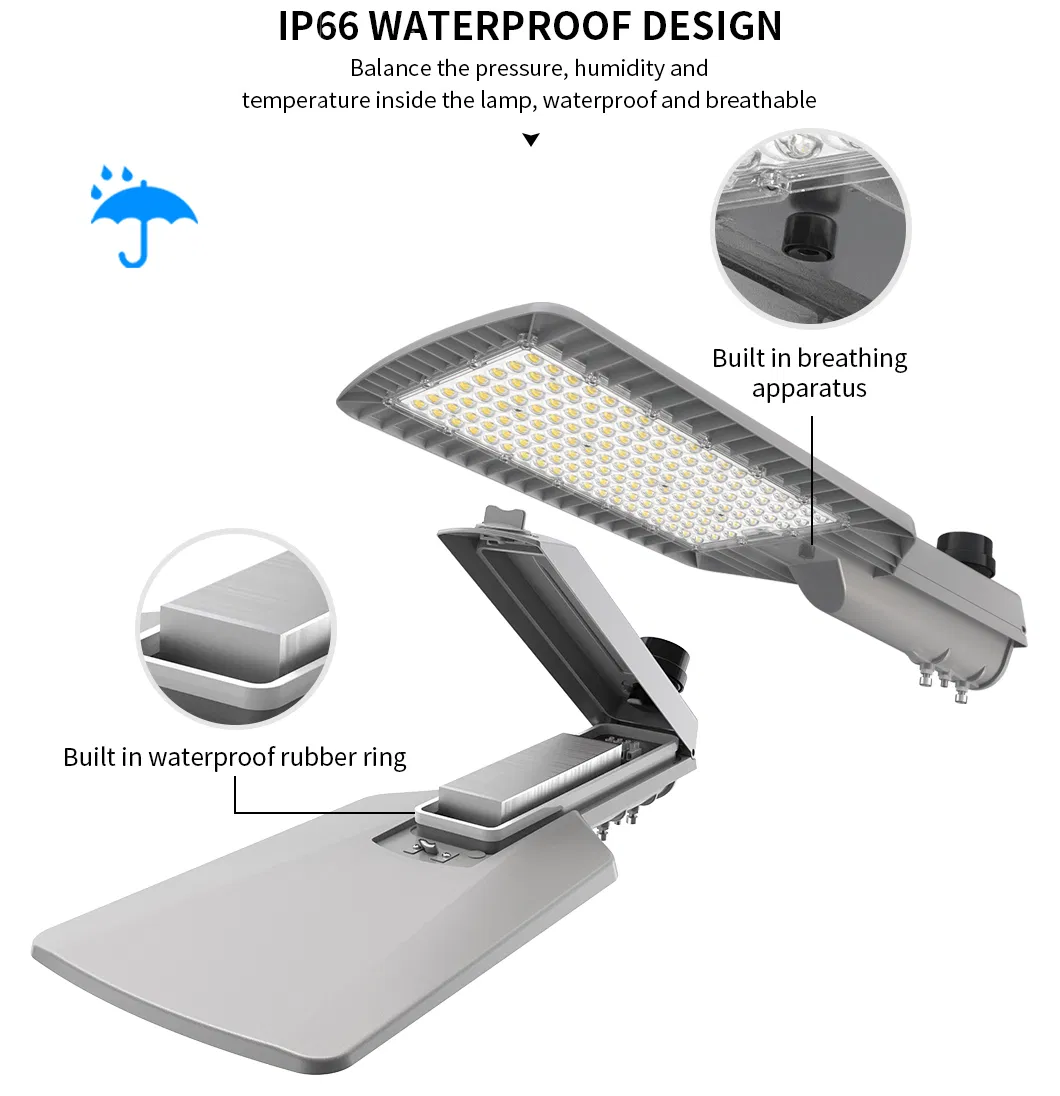

High-efficiency coating passes 500 hours salt spray test.

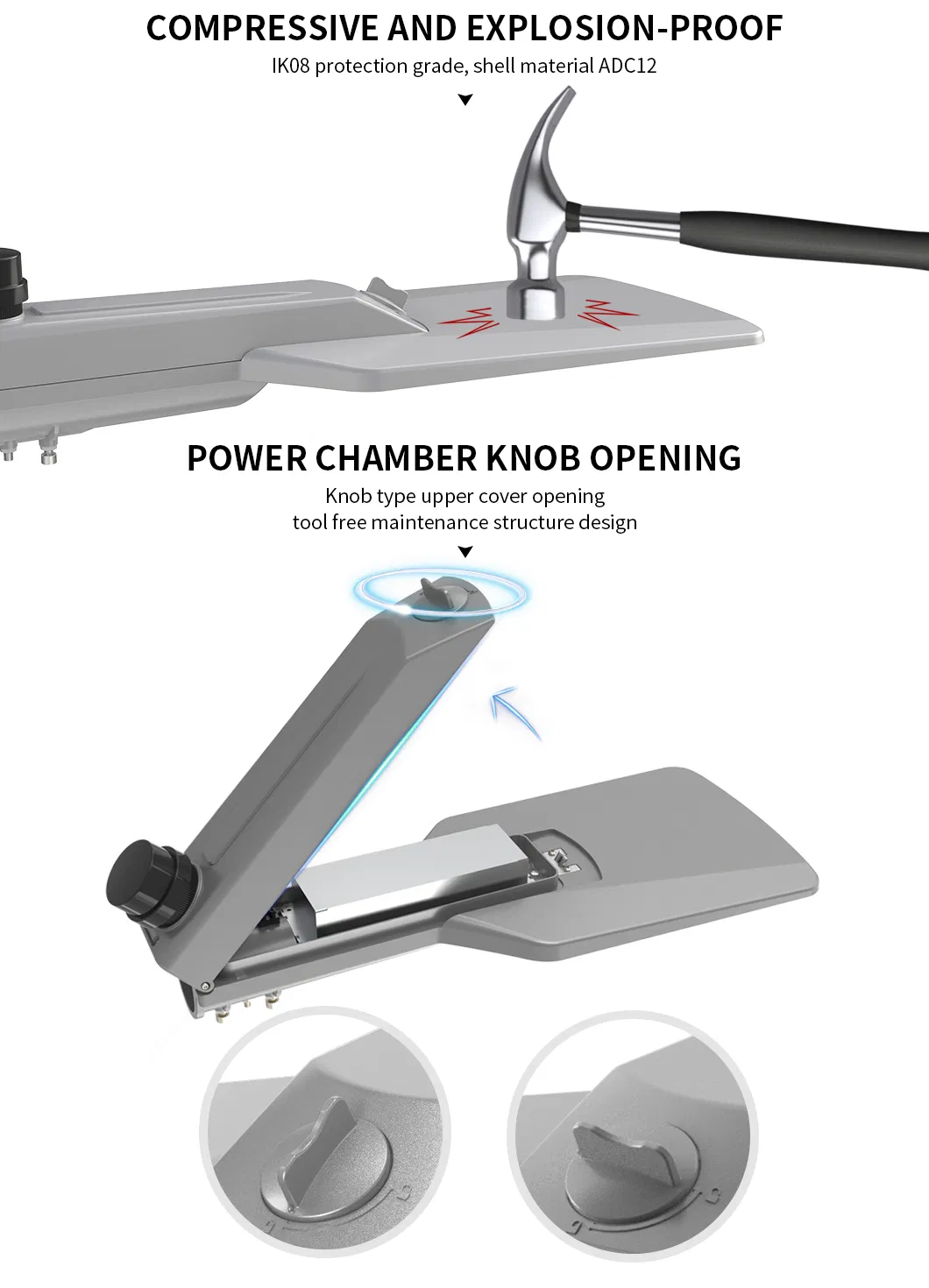

Tool-free opening for easy installation and maintenance.
Detachable design with fast turn-off power protector for safety.
High efficiency up to 170lm/w with cost-effective performance.
Compatible with DALI, 0-10V/1-10V control systems.

Technical Data Sheet

GENERAL INFORMATION ELECTRICAL INFORMATION
Mounting Module Post top/side entry (42-60Φ or 76-80Φ) Electrical Class Class I
Tilt Angles 0, ±5, ±10, ±15 Nominal Voltage 100V-277Vac 50/60Hz

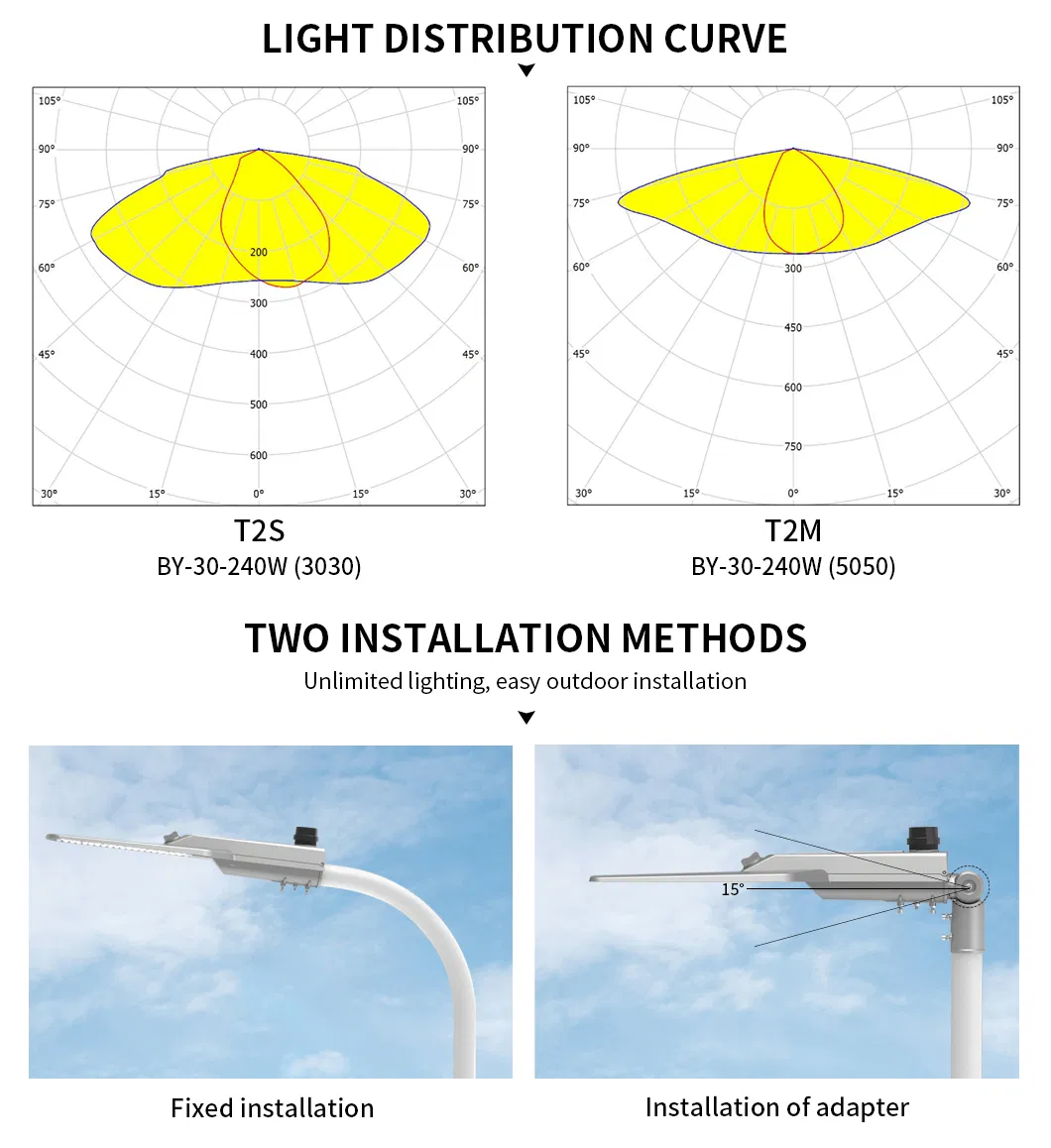

Lens Options Type II-M/S Power Factor ≥0.95 @ 230Vac
Surge Protection Up to 20kV (Optional) Control system DALI, 1-10V, 0-10V, Microwave induction
HOUSING AND MATERIALS OPTICAL INFORMATION
Housing ADC 12 die-casting LED Color Temp 3000K / 4000K / 5000K / 5700K
Housing Finish Powder spraying, corrosion resistance CRI CRI≥70, CRI≥80 (optional)

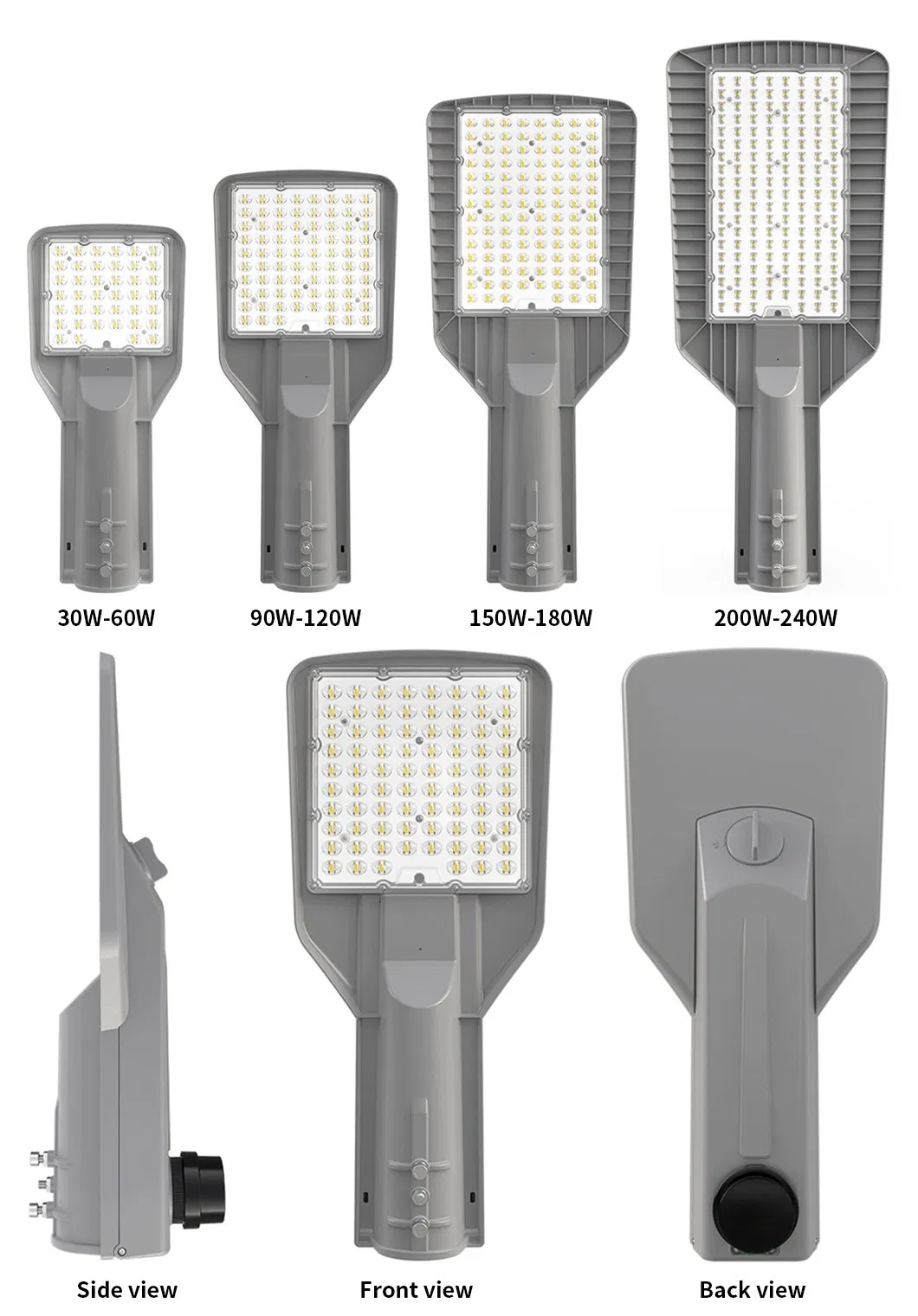

Product Configuration Scheme

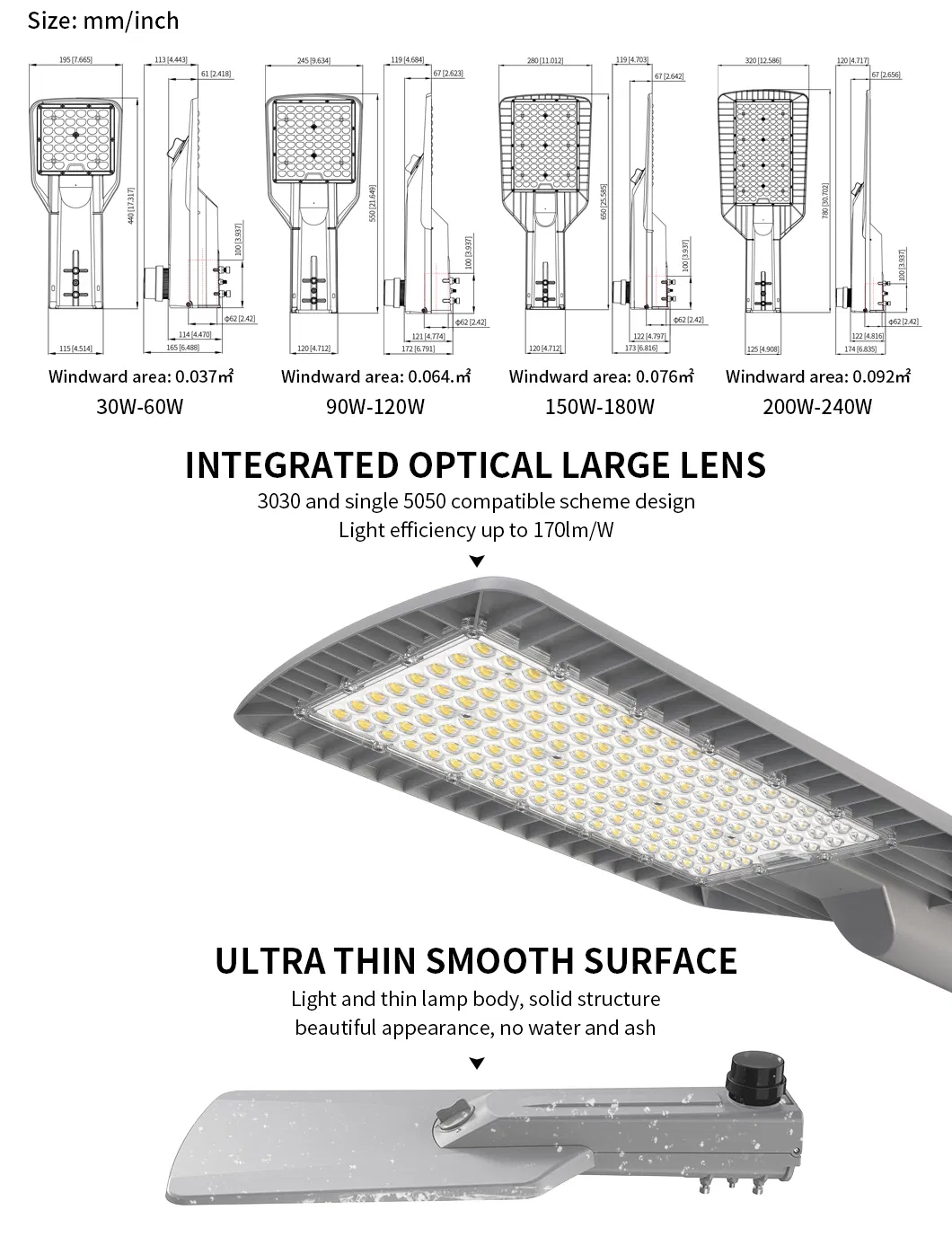

Model No. Power LED Brand Efficiency Luminous Flux Dimensions (mm) N.W (kg)
SWL-BY30W 30W CREE 135-150lm/w 4050-4500lm L440*W195*H169 2.9
SWL-BY60W 60W CREE 135-150lm/w 8100-9000lm L440*W195*H169 2.9
SWL-BY100W 100W CREE 135-150lm/w 13500-15000lm L550*W245*H172 4.2
SWL-BY150W 150W CREE 135-150lm/w 20250-22500lm L650*W280*H173 5.3
SWL-BY200W 200W CREE 135-150lm/w 27000lm L780*W320*H174 6.6
SWL-BY240W 240W CREE 135-150lm/w 32400-30000lm L780*W320*H174 6.6

Product Details

Frequently Asked Questions

Q1. Are you an experienced manufacturer?
Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.
Q2. What certifications do your products hold?
Our products are TUV, CB, CE, EMC, SAA, CCC, and RoHS approved, with full reports for IP66, IK10, LM79, and LM80.
Q3. Do you offer customization for logos and packaging?
Yes, we provide comprehensive OEM services including custom branding on products and specialized packaging.
Q4. What is the standard warranty period?
We offer a 5-7 year warranty depending on specific customer requirements and application environments.
Q5. What is the typical lead time for orders?
Samples are typically ready in 3-7 days, while mass production orders take approximately 10-20 days.
Q6. How do you handle product quality control and faults?
Our defective rate is less than 0.1%. For any faults within the warranty period, we provide replacement lights or repair services depending on the scale and situation.
