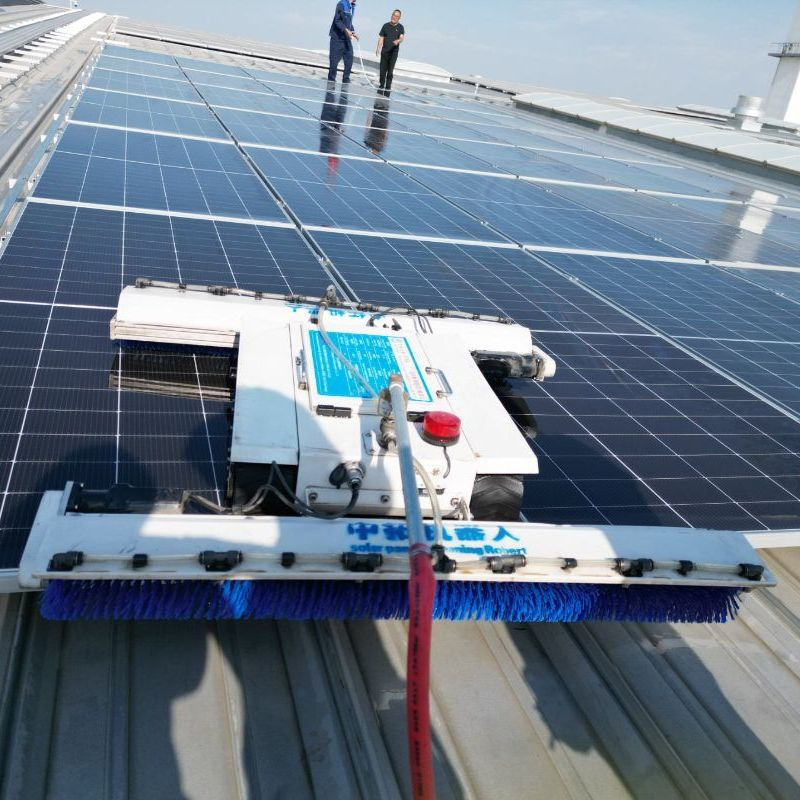

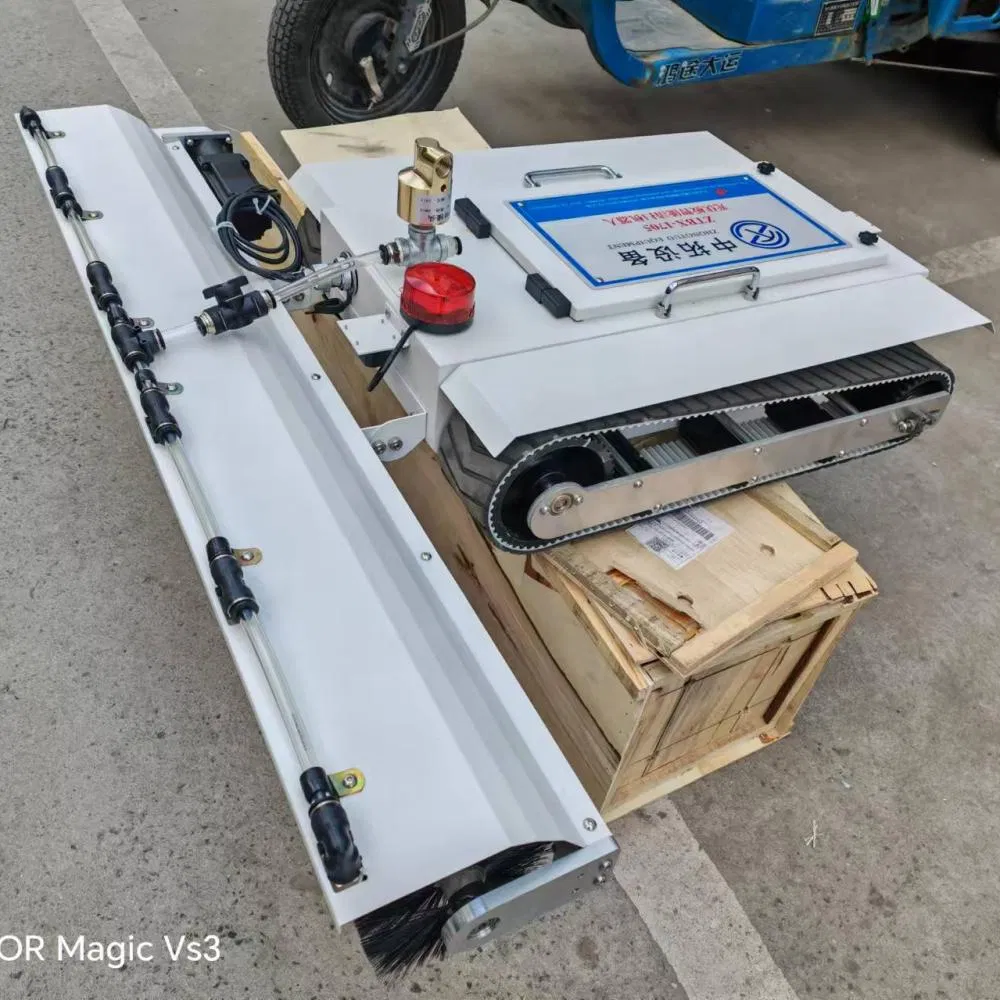

Photovoltaic Cleaning Robot
This product is an intelligent portable cleaning robot, mainly used for cleaning and dust removal of photovoltaic modules. Using intelligent walking technology, it can automatically walk and adsorb on photovoltaic panels. Through the design of waterless autonomous cleaning, it can clean foreign objects such as sand, dust, and fallen leaves on the surface of solar panels.
Technical Parameters
| Operating Voltage | 24V |
| Idle Speed | 250 rpm |
| Travel Speed | 22m/min |
| Cleaning Width | 1100mm |
| Endurance | 6 hours |
| Cleaning Type | Washing / Dry cleaning |
| Working Angle | Washing 15° / Dry cleaning 15° |
| Power Supply Mode | Lithium battery (24V)*2 |
| Maximum Water Consumption | 20L/min |
| Operating Temp Range | -20 to 50ºC |
| Brush Wire Material | New nylon yarn |
| Equipment Weight | 29kg (excluding battery) |
| Outline Dimension | 1200*1000*350mm |
Core Features
🎮

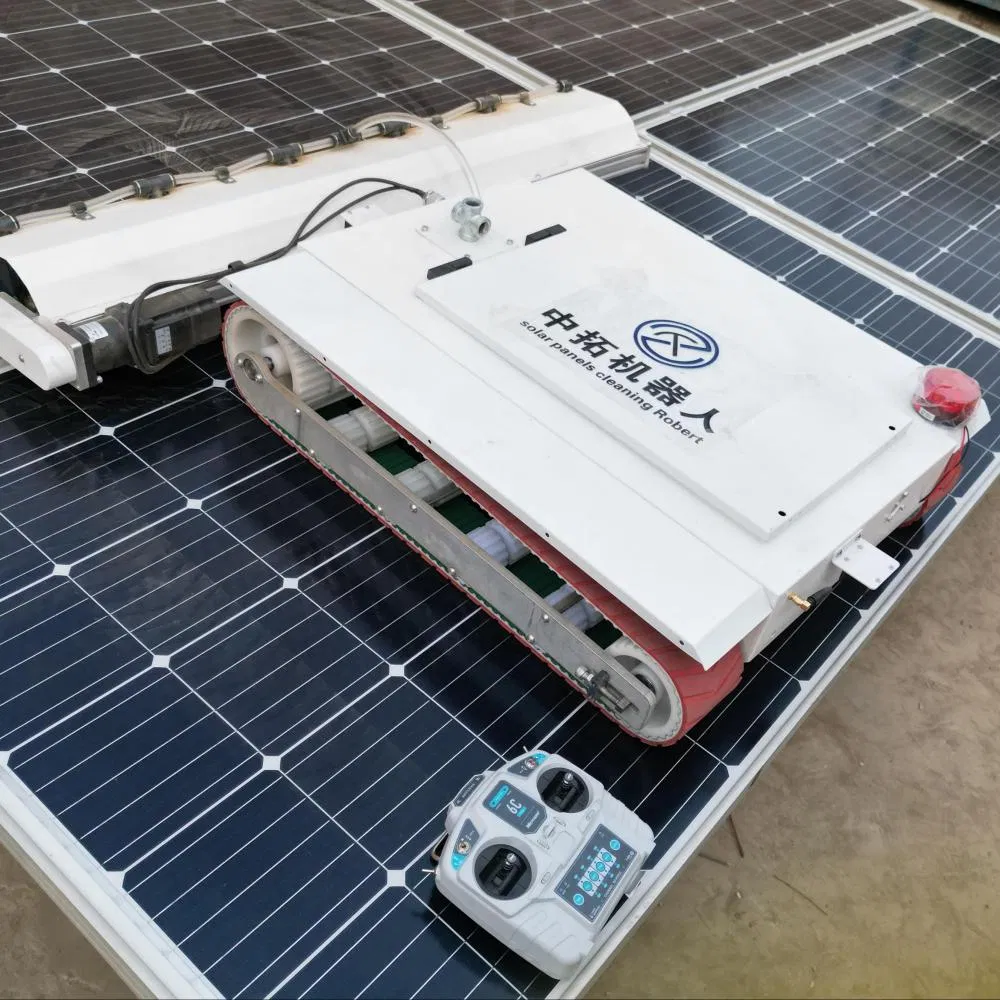

REMOTE CONTROL 250M: The robot's remote control distance is up to 250 meters. It uses imported radio frequency technology for a stable signal and stronger anti-interference ability.
🛡️
INTELLIGENT ANTI-FALL SYSTEM: Equipped with 4 high-precision sensors. Automatically stops at panel edges with drop detection indicators to prevent risks.
🧹
1100MM ROLLER BRUSHES: High-cleaning efficiency (up to 1.2MW per day) using soft nylon material that protects solar panels from damage.
🚜

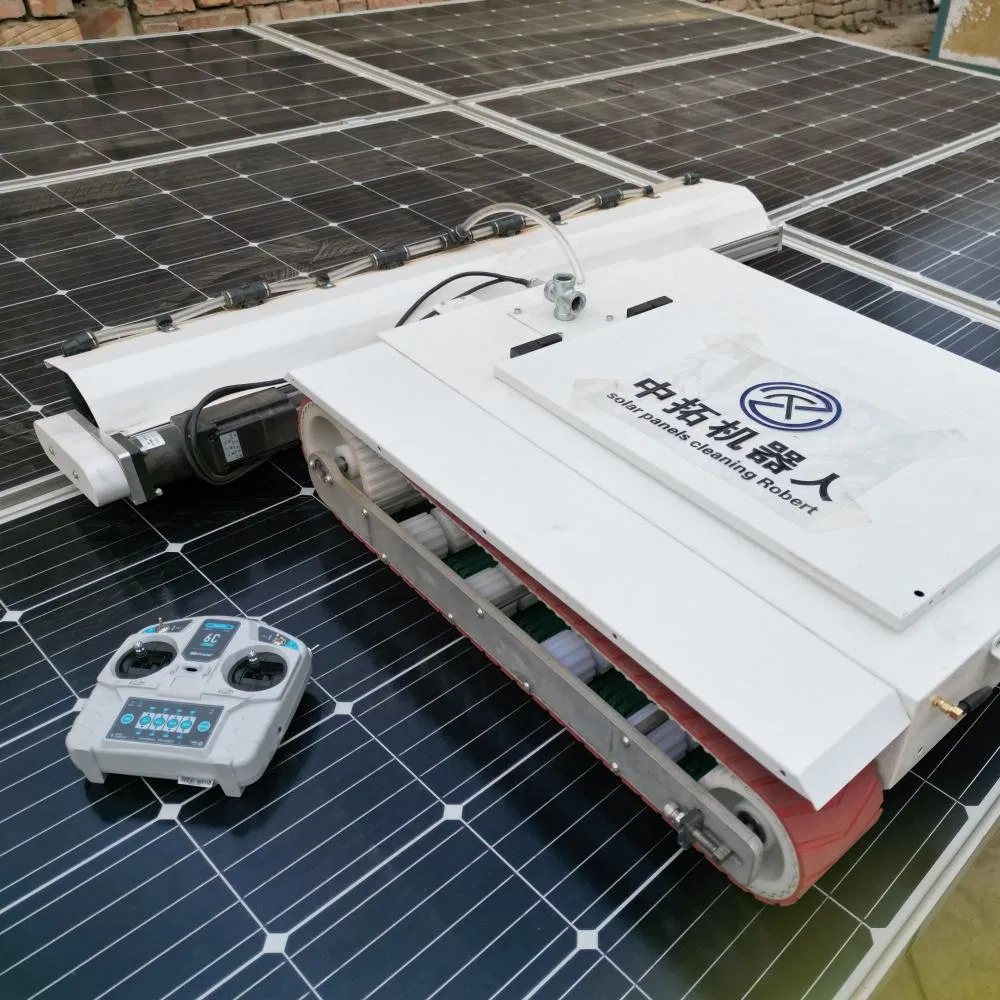

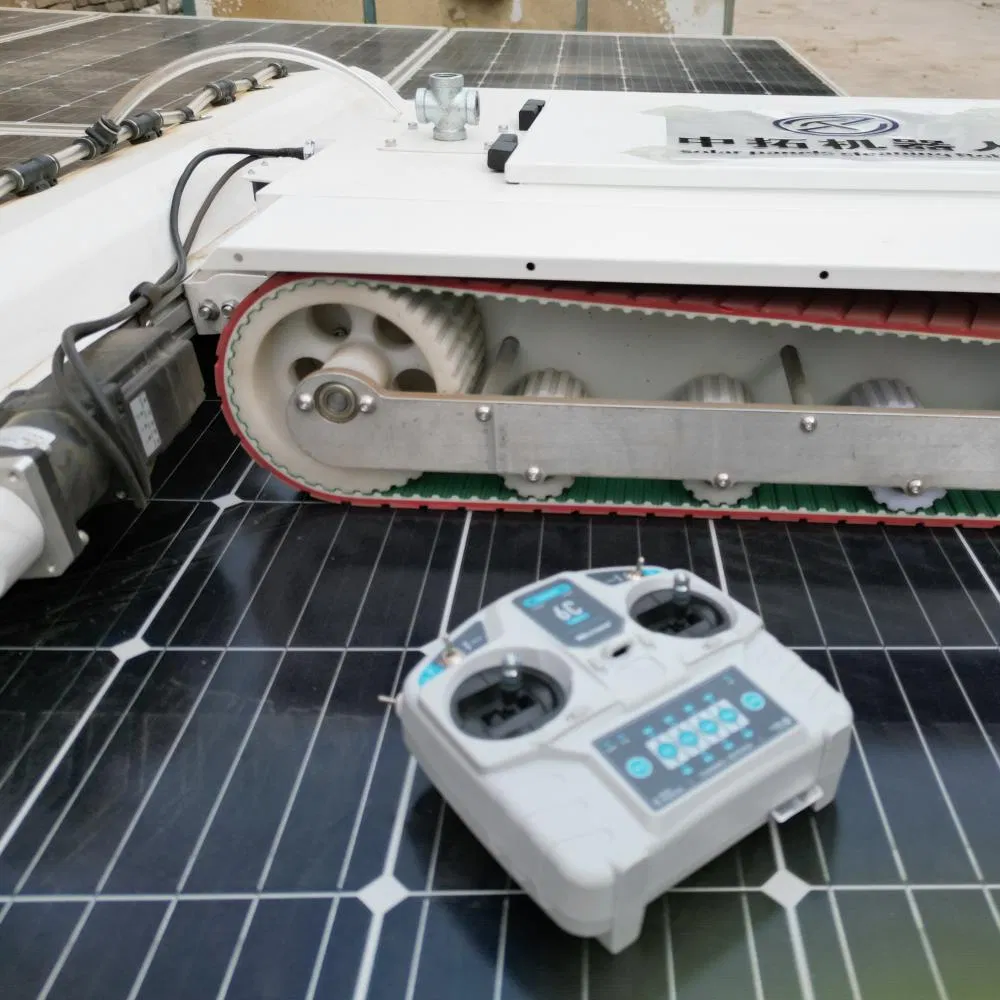

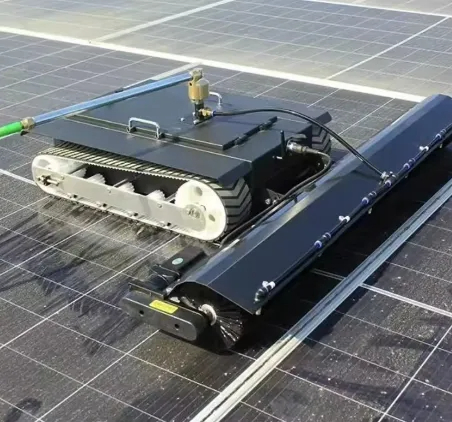

CRAWLER CHASSIS: All-terrain operation. Move forward, backward, turn left/right for zero blind spot cleaning.
Our Solar Panel Cleaning Brush is very portable and it doesn't take much manpower. Each person can clean 0.5 to 0.8MW per day.

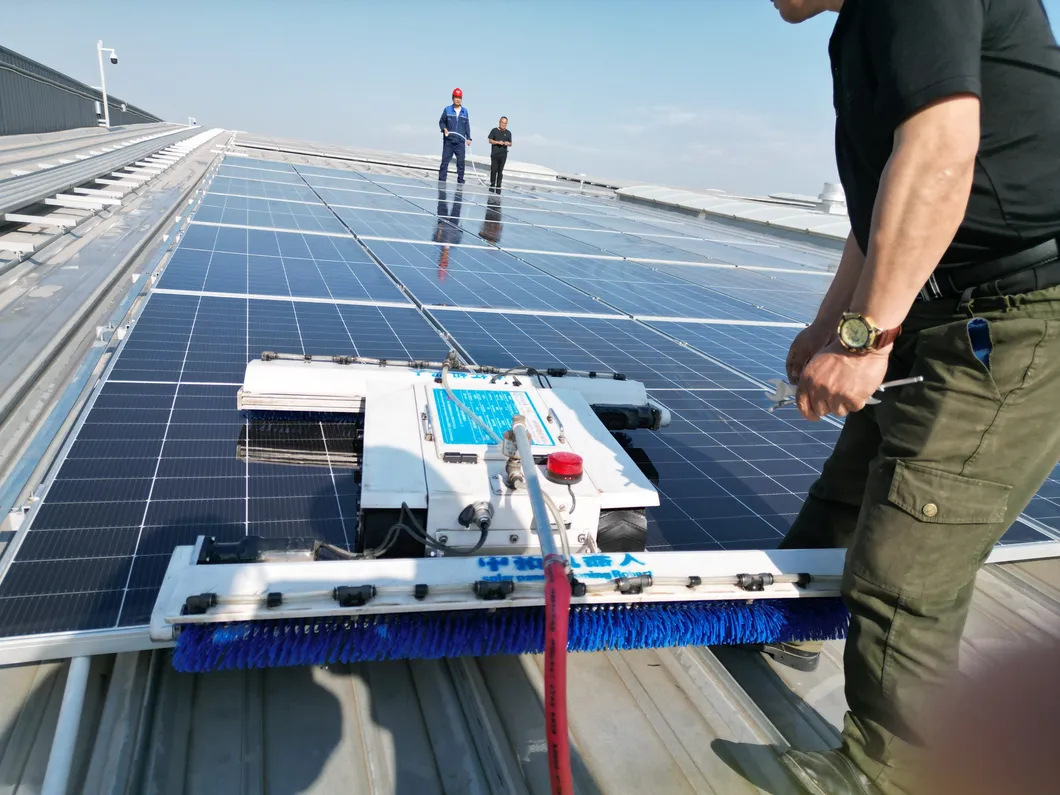

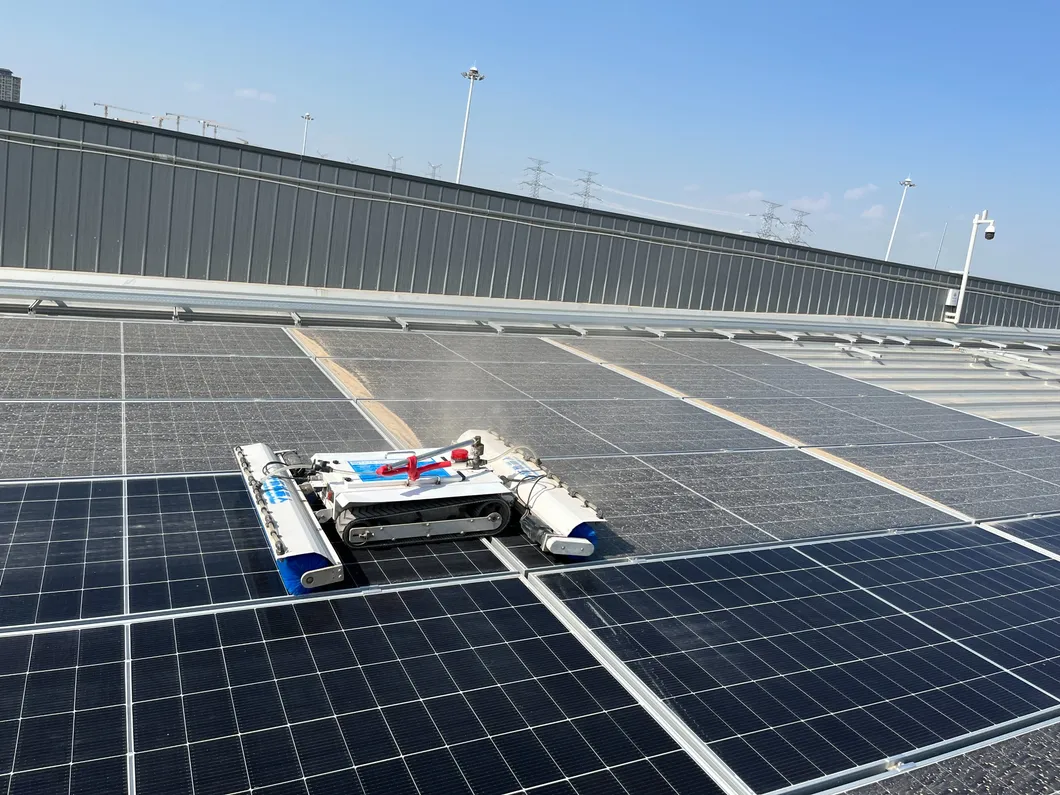

Work Scenes & Applications

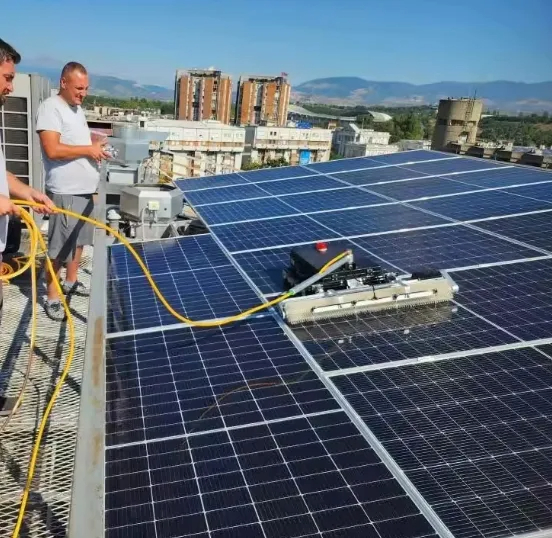

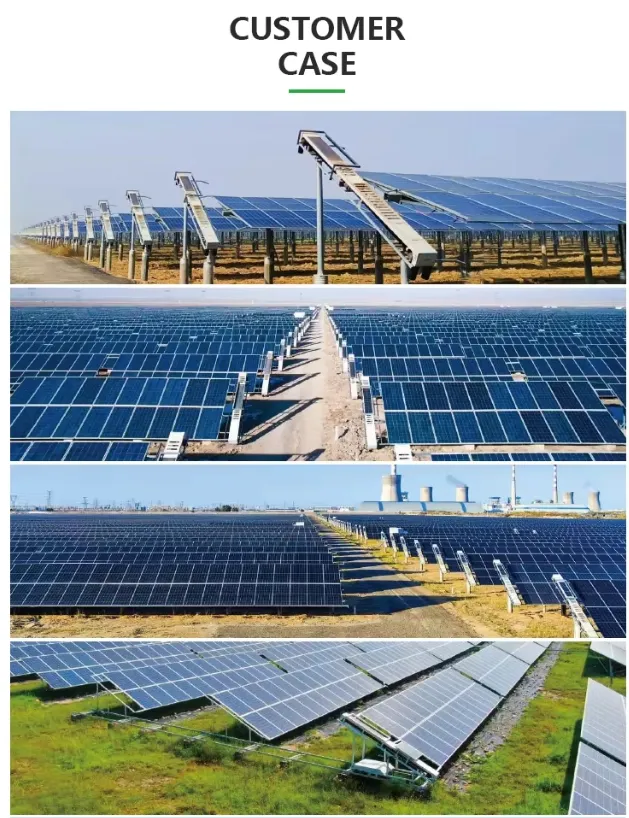

Suitable for various environments: deserts, hills, large-scale ground power stations, fish-photovoltaic complementary stations, and distributed rooftop installations.
Packing List

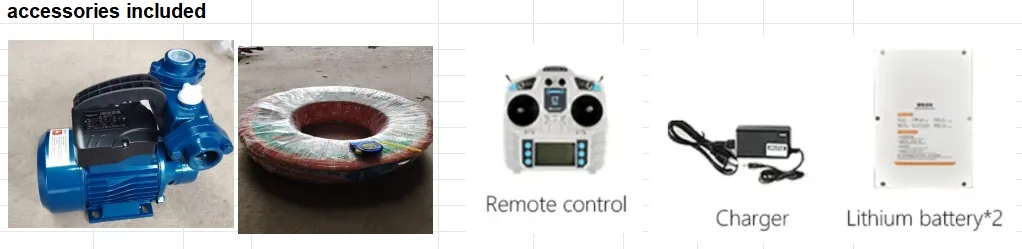

Standard kit includes: Main unit, remote control, two lithium batteries (24/26Ah), two 24v 3A chargers, a lithium-ion battery backpack, and spare tool accessories.
One-stop Solar Cleaning Solutions
We provide a range of photovoltaic module cleaning products including manual rotating brushes, remote control cleaning robots, and fixed cleaning robots. Our goal is to reduce physical labor, minimize safety risks, and promote the intelligent process of global cleaning services.
Frequently Asked Questions
How do you guarantee product quality?
We have a comprehensive pre-sales and after-sales service system. Every unit is tracked from factory production through the entire order process with dedicated service specialists to ensure no issues arise.
Are sample orders available for the robot?
Yes, sample orders are welcomed for testing and evaluation of the robot's performance on your specific site conditions.
Do you offer OEM and ODM customization?
Yes, we provide OEM and ODM services for most of our products to meet specific regional or technical requirements.
What other solar products can we purchase?
Besides cleaning robots, we provide Solar Panels, BIPV, Batteries, Portable power supplies, and various other solar energy solutions.
What is the typical lead time and stock status?
We maintain inventory for most standard products for immediate delivery. For large orders, we calculate delivery times based on quantity and communicate schedule details clearly.
Is the robot suitable for all terrains?
Yes, the crawler chassis is designed for all-terrain operation, including deserts and hills, making it highly versatile for different power station layouts.
